Print and Page Setup

The Print section of the ribbon controls provides you control over printer actions related to the report.



Print a Document Using the Print Dialog

To print a document, do one of the following.

  • Click the Print...WPFDesigner_PreviewToolbar_Print button on the toolbar.

  • On the menu, click Print...

    EUD_WpfPrintPreview_MenuPrint

  • Press CTRL+P.

In the invoked Print dialog, specify the necessary settings (the printer name, number of copies, page range, etc.) and click OK.

EUD_WpfPrintPreview_PrintDialog



Print a Document Using Default Settings

To send a document directly to the default printer without customizing print settings, click the Quick PrintWPFDesigner_PreviewToolbar_QuickPrint button on the Preview's toolbar.

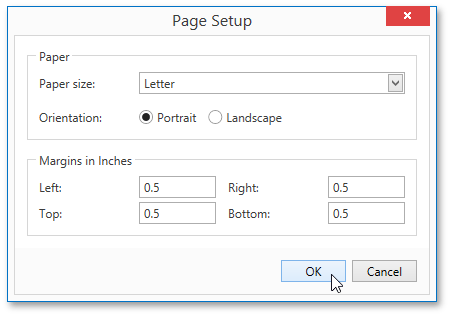

Change Print Settings Using the Page Setup Dialog

To invoke the Page Setup dialog, click the Page Setup...WPFDesigner_PreviewToolbar_PageSetup button on the Print Preview's toolbar.

EUD_WpfPrintPreview_PageSetupDialog

The Page Setup dialog allows you to do the following.

  • Change the paper size using the dedicated drop-down.
  • Select page orientation (Portrait or Landscape).
  • Specify page margins by entering the required top, left, bottom and right page margin values into the appropriate editors.



Scaling

To scale a document, click the ScaleWPFDesigner_PreviewToolbar_Scale button on the Print Preview's toolbar. This invokes the Scale dialog.

EUD_WpfPrintPreview_ScaleDialog

The dialog provides two ways for scaling the document.

  • Scaling by entering a zoom factor.

    Select the first option and set the required percentage value in the dedicated editor.

  • Scaling to fit into X pages.

    Choose the second option and specify the required number of pages.

Click OK to save changes and close the dialog.
